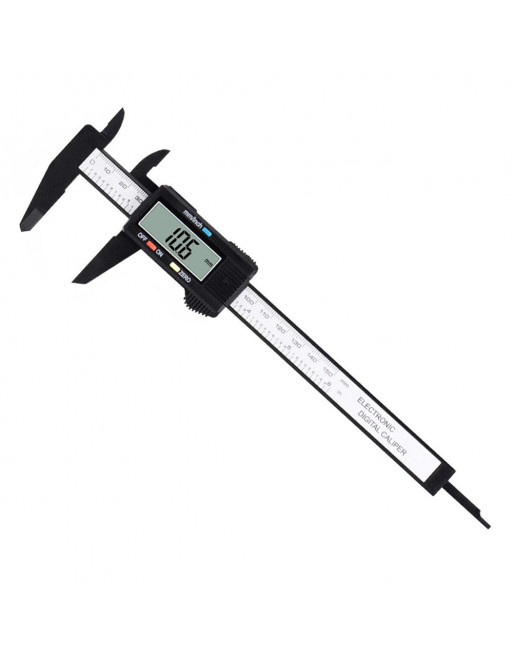

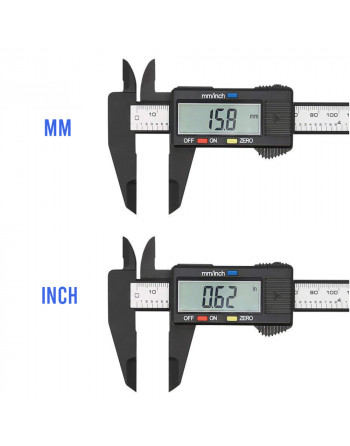

Introduction — The 0-150 mm electronic digital caliper is a precision instrument indispensable to any watchmaker or jeweller. Its LCD reads to a hundredth of a millimetre and switches to inches with a single tap on the mm/in key.
Product overview
The body is treated stainless steel with ground rails and constant-friction slide. The inner and outer jaws are V-cut so they grip a lug hole or a spring bar diameter equally well. The depth rod lets you record the thickness of a case-back or the usable length of a crown stem.
Technical specifications
- Range: 0 to 150 mm / 0-6 inches
- Resolution: 0.01 mm
- Accuracy: ±0.02 mm
- Material: {g['steel']}
- Display: high-contrast LCD
- Power: SR44 button cell (supplied)
- Functions: mm/in, absolute/relative zero, ON/OFF
When to use it
It serves to measure case diameter, lug-to-lug, spring bar diameter, hole depth, case-back thickness or link length. It is equally useful in jewellery work to check ring thickness or signet-ring inner diameter.
How to use
- Open the jaws, wipe them and press ON.
- Close fully and press ZERO to calibrate.
- Place the part lightly against the jaws and read the value.
- For inside measurements, use the upper points.
- Switch off with OFF or let auto-sleep take over.
Quality and origin
The caliper ships in its moulded foam-lined case. Battery included. The instrument is factory-calibrated and supplied with a simplified conformity certificate.
FAQ
How do I replace the battery?
Slide off the cover above the screen and replace the SR44 cell observing + polarity.
Can I measure lug-to-lug width?
Yes, by placing the outer jaws against the inner faces of the lugs.
Is the instrument waterproof?
No. Avoid prolonged contact with liquids or solvents; wiping dry after use is enough.
