A single-knurled stainless steel pin is the friction-fit fastener that keeps the links of a metal watch bracelet aligned and locked. Simple to fit, secure once seated, and built to last for years of daily wear.
Product overview

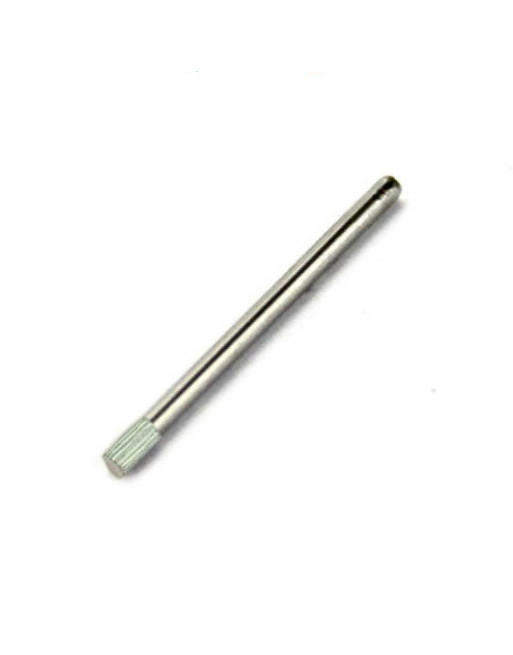

This single-knurled pin (knurled on one end only) is a precision watch repair part used to join the links of a steel bracelet. The knurled end grips the inside of the link by friction, holding the pin firmly in place without the need for a separate split or screw mechanism. Machined from stainless steel for corrosion resistance, it's available in multiple lengths and diameters to match a wide range of bracelet references — from entry-level fashion watches to higher-end stainless steel pieces.
Technical specifications
- Material: 304 stainless steel
- Diameters available: 0.80 to 1.20 mm typical range
- Lengths available: 6 mm to 22 mm
- Knurling: single end, knurled grip section
- Compatibility: steel link bracelets with friction-fit pin system
- Application: bracelet link reassembly, buckle pin replacement
When to use it
Use this pin when you've removed bracelet links during a resize, when fitting a buckle, or when an existing knurled pin has worked loose or sheared. Knurled pins are common on mid-range Citizen, Seiko, Casio, Festina and Lotus references. Inspect the original pin with a caliper to confirm the diameter, then choose a matching length. If your bracelet uses a double-knurled pin instead, browse our dedicated category.
How to install / use
- Set the bracelet on a holder block, link hole aligned.
- Insert the smooth end of the pin into the link first.
- Press the knurled end gently with a pin pusher or watchmaker's hammer.
- Drive the pin until it sits flush with the link surface on both sides.
- Verify the joint articulates freely without play.
Quality & origin
Each pin is inspected for diameter, length and knurl pattern. Shipping within 24 hours from our French warehouse, stainless steel sourced from certified European mills.
FAQ
How do I tell single- from double-knurled pins?
Inspect both ends of the original pin. If only one end has a textured grip pattern, you need a single-knurled pin. If both ends are textured, choose the double-knurled version.
Which direction should I drive the pin in?
Bracelets are usually marked with arrows on the inside of the links indicating drive direction. The knurled end is pressed into the link to lock it in place.
Can I reuse the original pin?
If the knurling is intact and the pin is straight, yes. Otherwise replace it to avoid joint failure.
Shipping and returns
Orders placed before 3 PM on business days ship the same day from our French warehouse. Tracked delivery covers all EU countries, the UK and Switzerland, with typical transit times of 2 to 5 business days. Returns are accepted within 14 days of receipt for any unopened item, in line with EU consumer law.
Care and maintenance
To prolong the life of your watch and its fittings, rinse stainless steel parts under fresh water after exposure to salt, chlorine or sweat, and dry them with a soft cloth. Avoid contact with harsh solvents, perfumes and abrasive cleaners. Inspect your spring bars or pins at least once a year and replace them at the first sign of bending, surface rust or loss of tension. A small investment in fresh fittings is the cheapest insurance against losing your watch.
