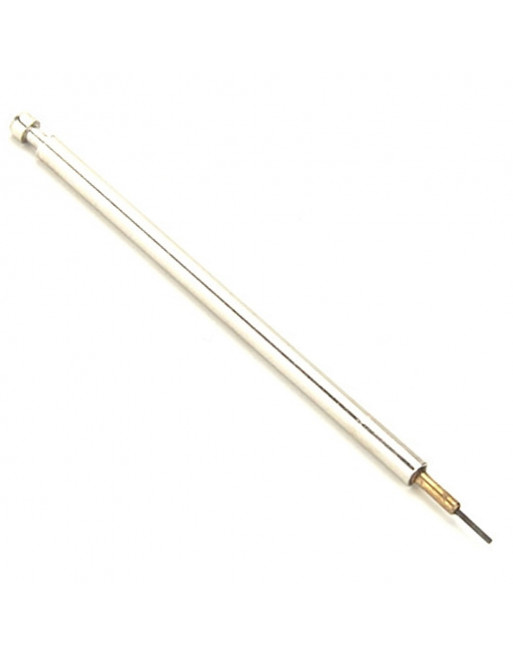

Introduction — The interchangeable-tip pin punch is the all-rounder of any watch toolbox. Its cylindrical brass body holds two hardened-steel tips of different diameters (0.8 and 1.0 mm) stored inside the handle.
Product overview
The tool drives out a stuck watch pin or spring bar with a light watchmaker's hammer tap, swapping the tip according to hole diameter. The knurled handle ensures a sure grip even with damp fingers.
Technical specifications
- Body material: solid brass
- Tips: hardened steel, Ø 0.8 mm and Ø 1.0 mm
- Storage: tips housed in the handle
- Overall length: 110 mm
- Weight: 28 g
- Origin: Europe
- Compatibility: 0.7-1.1 mm pins
When to use it
It is used to dismantle a split-pin metal bracelet, extract a seized spring bar, or take apart a vintage chronograph case whose axles are force-fitted.
How to use
- Unscrew the handle to access the spare tips.
- Pick the tip matching the hole diameter.
- Screw it into the tool head.
- Rest the tip on the pin and keep it perpendicular.
- Strike two or three sharp blows with a light {g['hammer']}.
Quality and origin
Tool made in Europe, supplied with the two main tips. The brass body offers enough mass to transmit the strike without risking a cracked lug. The hardened steel tips are end-ground so they do not mark.
FAQ
Can I order finer tips?
Yes, Ø 0.6 mm and Ø 1.2 mm tips are available separately as spare parts.
How do I avoid bending a tip?
Stay strictly perpendicular; even a slight angle bends the tip on the first blow.
Can it be used without a hammer?
For loose pins, yes, by hand pressure. For most cases a light hammer tap is required.
