Watch spring bars Ø 1.78 mm, 6–23 mm, 360-pc assortment

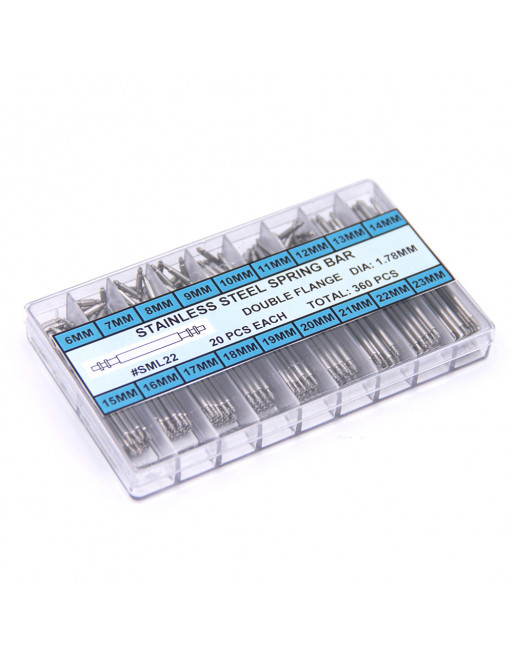

This is a complete set of 360 spring bars in 1.78 mm diameter, covering lengths from 6 – 23 mm. This box covers 18 different lengths spanning the 6 mm – 23 mm range, with approximately 20 units per length, for a total of 360 pieces. Each spring bar is machined from stainless steel and features the double-shoulder double-groove geometry used by virtually every modern watchmaker to retain a bracelet between the lugs of a watch case.

Product overview

A spring bar is a small spring-loaded telescopic bar fitted between the two lugs of a watch case. Compressed at each end, its tips drop into the holes drilled in the inside of the lugs and hold the strap or bracelet firmly in place. The spring bar is by far the most common bracelet-retention component in horology and is used on quartz, automatic and chronograph references from entry-level brands all the way up to high-end manufactures. With this box, a watchmaker, jeweller or enthusiast can address virtually any 18-mm, 20-mm or 22-mm lug width that ships from the factory with 1.78 mm bars — typical of mid-size men's pieces, unisex tool watches and many ladies' dress watches.

Technical specifications

• Component type: spring bar
• Diameter: 1.78 mm
• Length range: 6 – 23 mm
• Pieces per box: 360
• Material: stainless steel
• Finish: brushed / mirror polish on heads
• Storage: compartmented plastic case with hinged lid

• 6 mm
• 7 mm
• 8 mm
• 9 mm
• 10 mm
• 11 mm
• 12 mm
• 13 mm
• 14 mm
• 15 mm
• 16 mm
• 17 mm
• 18 mm
• 19 mm
• 20 mm
• 21 mm
• 22 mm
• 23 mm

When to use it

Reach for this box whenever you notice that a bracelet or strap no longer holds firmly between the lugs, when the side play of a link has become visible, when a bracelet had to be resized in the past and the original pin was lost or bent, or simply when a customer brings in a watch whose retention component is missing. The 6 – 23 mm range covers virtually every adult wrist watch on the market and most ladies' references; it is comfortable for 18-, 19-, 20-, 21- and 22-mm lug widths, the four most common in the industry. Professional watchmakers will appreciate having every length on hand without re-ordering; enthusiasts will value the freedom to swap a strap for a fashion change without paying boutique prices for a single replacement pin.

How to use / install

1. Measure the inside lug-to-lug width with a digital calliper. Compare to the chart and pick a spring bar 0.10–0.20 mm shorter than the measured opening so that the tips can clear the lug holes when fully compressed.
2. Slide the strap or bracelet between the lugs and align its hollow end with the chosen spring bar.
3. Compress one tip of the spring bar with a thumbnail or the forked end of a spring-bar tool, then engage that tip into one lug hole.
4. Compress the opposite tip, slide the bar across, and let it snap into the second lug hole. Pull gently on the strap to confirm both tips are seated.
5. Check from the back of the case that both tips protrude into their holes; if a tip is only partially seated, the spring bar can release on the wrist.

Quality & origin

Each piece is machined from stainless steel (typically AISI 304L or 316L grades depending on the production batch), bright-finished and passivated to resist sweat and skincare residues. The spring bars feature hardened spring steel inside the body, with a calibrated spring rate that keeps the tips engaged even under the shocks of daily life. Knurled pins are work-hardened in the knurling zone so they hold their grip after several removals. Our boxes ship from European stock with a per-size visual control and a length tolerance kept within ±0.1 mm.

FAQ

How do I measure the right length?

With a digital calliper, measure the inside lug-to-lug width of your watch case, then subtract approximately 0.1–0.2 mm — that is the spring bar length you need. For pins driven into a steel bracelet, measure the existing pin or the width of the link from the outside.

Are these compatible with my Rolex / Omega / Tudor?

Yes for the diameter that matches your reference: 1.78 mm fits most Submariner-, Datejust-, Speedmaster- or Black Bay-style cases that use generic spring bars. For original Rolex / Omega service, the OEM-coded part may be required by warranty. These pieces are non-OEM but dimensionally compatible.

Can I reuse a pin after removing it?

A spring bar may be reused as long as its tips still spring freely and have not been chamfered by repeated tool marks. A watch pin of split or knurled type loses grip after one or two removals and should be replaced to avoid losing the link in service.
